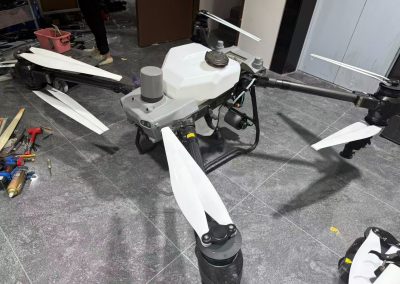

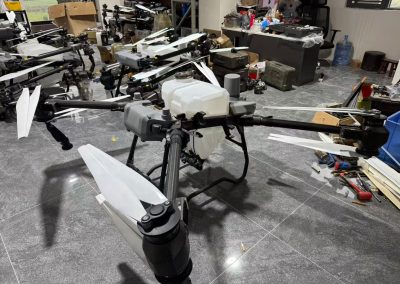

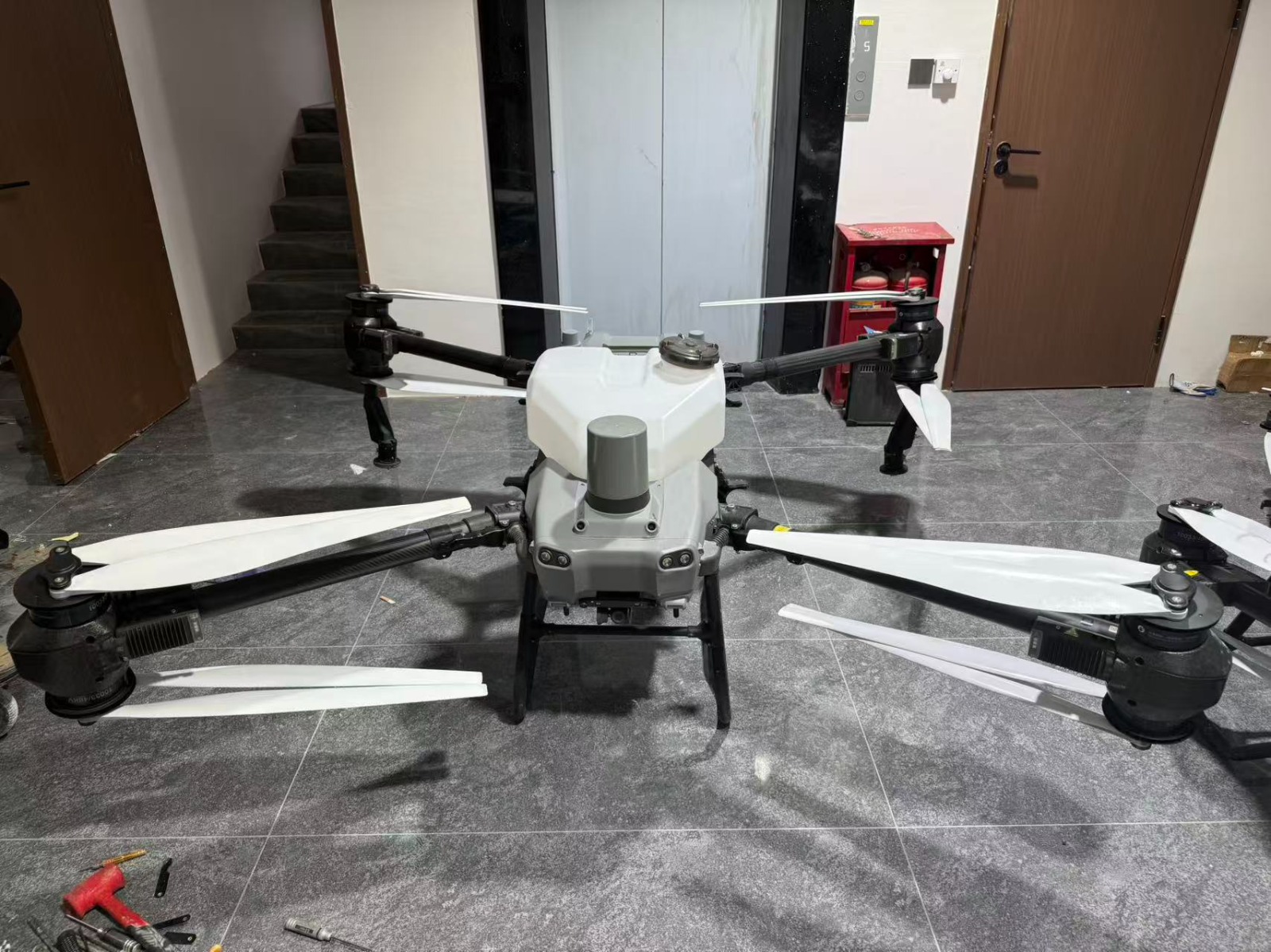

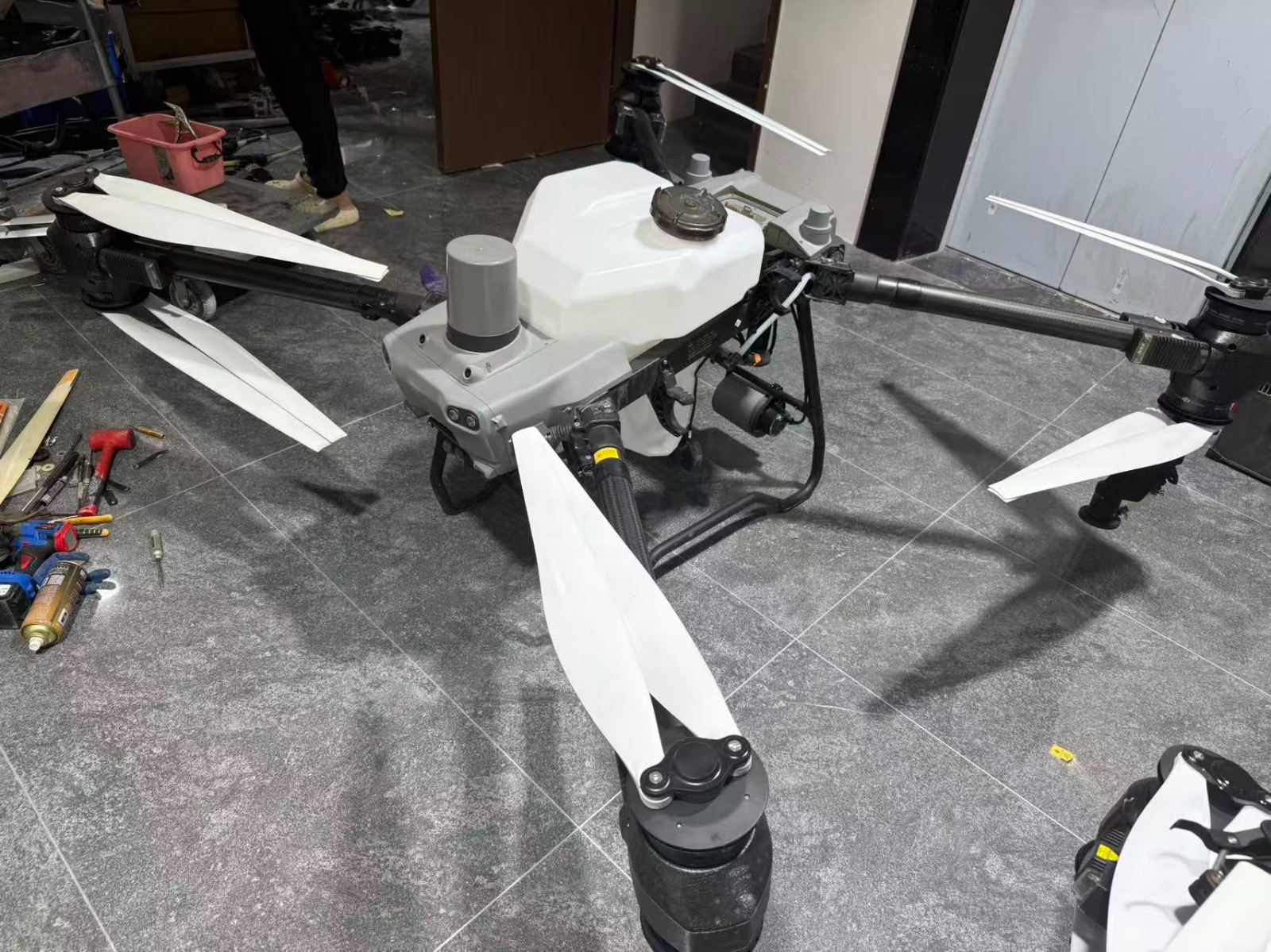

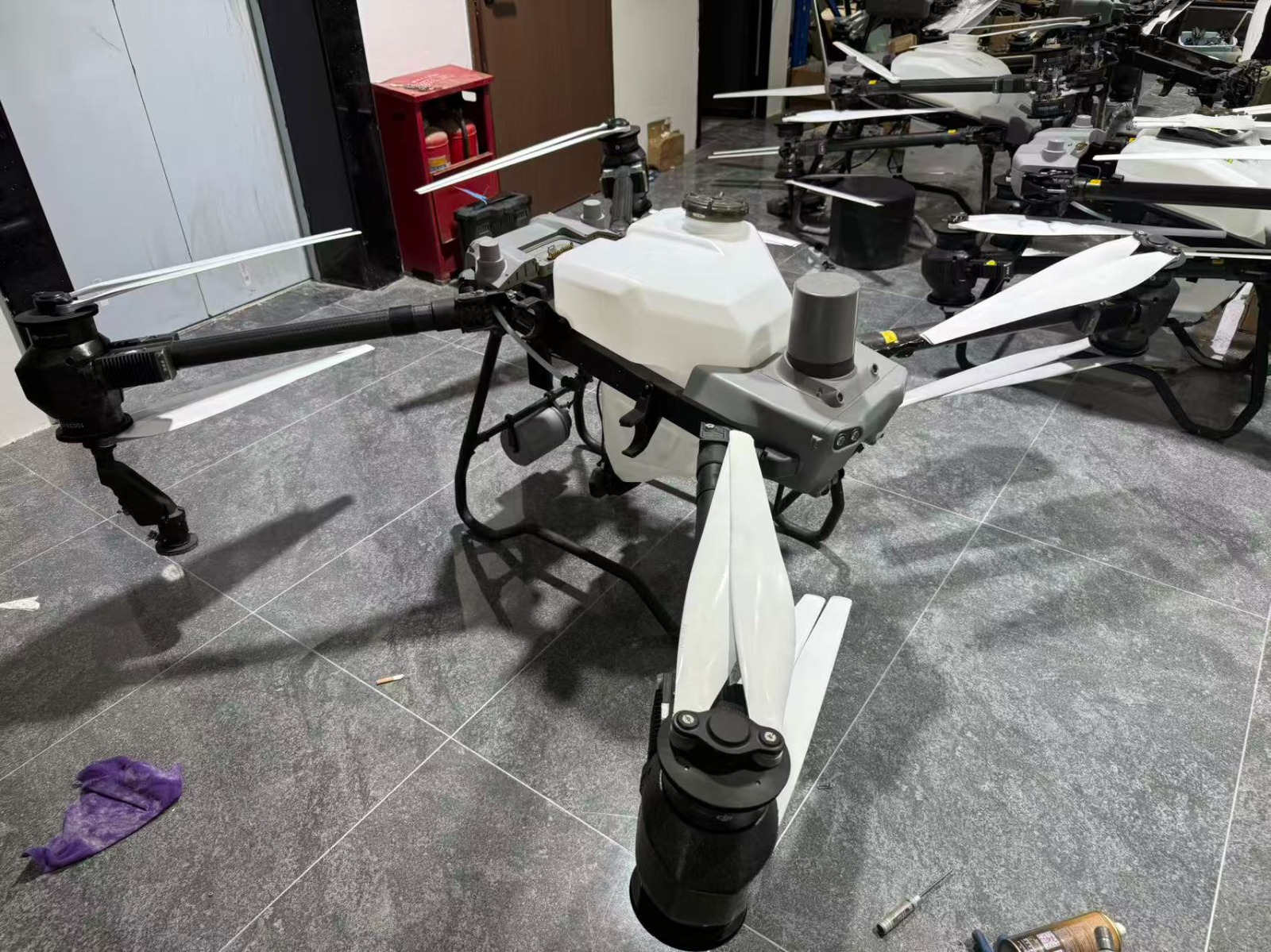

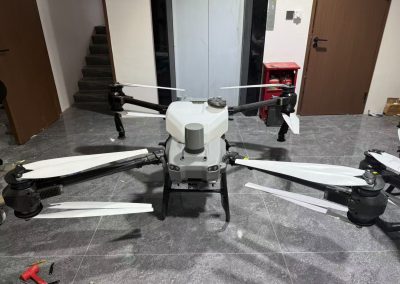

DJI Agras T50 – Intelligent Agricultural Drone
The DJI Agras T50 represents the pinnacle of agricultural UAV innovation — combining power, precision, and automation for large-scale spraying and spreading. Featuring a dual atomizing spraying system, 75 L spread tank, and phased-array radar with binocular vision, the T50 ensures uniform coverage and real-time obstacle avoidance across complex terrains.
With a maximum takeoff weight of up to 103 kg, 40 kg spray payload, and intelligent flight control powered by RTK, the T50 delivers industry-leading efficiency and accuracy. Its rapid 9–12 minute battery charging, advanced obstacle sensing, and rugged IP55-rated design make it the ultimate drone for modern, precision agriculture.
Aircraft Weight
39.9kg (excl. battery)
52kg (incl. battery)
Max Takeoff Weight [1]
Max takeoff weight for spraying: 92kg (at sea level)
Max takeoff weight for spreading: 103kg (at sea level)
Max Diagonal Wheelbase
2200mm
Dimensions
2800×3085×820mm (arms and propellers unfolded)
1590×1900×820mm (arms unfolded and propellers folded)
1115×750×900mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK enabled: Horizontal ±10cm, Vertical ±10cm
RTK disabled: Horizontal ±60cm, Vertical ±30cm (radar module enabled: ±10cm)
RTK/GNSS Operating Frequency
RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1
Max Configurable Flight Radius
2000m
Max Wind Resistance
6m/s
Propulsion System – Motors
Stator Size: 100×33mm
KV: 48rpm/V
Power: 4000W/rotor
Propulsion System – Propellers
Material: Nylon carbon fiber filament
Dimension: 54in (1371.6mm)
Propeller Rotation Diameter: 1375mm
Quantity: 8
Dual Atomizing Spraying System – Spray Tank
Material: Plastic (HDPE)
Volume: 40L
Operating Payload [1]: 40kg [1]
Quantity: 1
Dual Atomizing Spraying System – Sprinklers
Model: LX8060SZ
Quantity: 2
Nozzle Distance: 1570mm (Rear Nozzles)
Droplet Size: 50–500μm
Effective Spray Width [2]: 4–11m (at a height of 3m above crops)
Dual Atomizing Spraying System – Delivery Pumps
Type: Impeller pump (magnetic drive)
Quantity: 2
Single Pump Flow Rate: 0–12L/min
Max Flow Rate: 16L/min (2 sprinklers); 24L/min (4 sprinklers)
T50 Spreading System
Compatible Material Diameter: 0.5–5mm dry granules
Spread Tank Volume: 75L
Spread Tank Internal Load [10]: 50kg
Spread Width: 8m
Phased Array Radar System
Model: RD241608RF (forward phased array radar); RD241608RB (rear phased array radar)
Terrain Follow: Max slope in mapping-free operation 50°; Altitude detection range 1–50m; Stabilization working range 1.5–30m
Obstacle Avoidance [4]
Obstacle sensing range (multidirectional): 1–50m
FOV:
Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
Rear phased array radar: vertical 360°, horizontal ±45°
Working conditions: flying higher than 1.5m over obstacle at horizontal speed ≤10m/s and vertical speed ≤3m/s
Safety limit distance: 2.5m (distance between front of propellers and obstacle after braking)
Sensing direction: 360° multidirectional sensing
Binocular Vision System
Visual obstacle detection and mapping.
Range: 0.5–29 m | Speed: ≤10 m/s | FOV: 90° H, 106° V | Environment: adequate light, visible surroundings
Remote Controller (RM700B)
Pilot interface and transmission specs.
Frequencies: 2.4–2.4835 GHz, 5.725–5.850 GHz | Range: 7 km (FCC) | Wi-Fi 6 | Bluetooth 5.1 | Screen: 7.02″ LCD 1920×1200, 1200 cd/m² | Temp: –20° to 50 °C
DB1560 Intelligent Flight Battery
Primary power source for flight.
Model: BAX702-30000mAh-52.22V | Weight: 12.1 kg | Capacity: 30000 mAh | Voltage: 52.22 V
D12000iE Multifunctional Inverter Generator
High-power charging and backup supply.
Output: 42–59.92 V/9000 W | Fuel Tank: 30 L | Full Charge Time: 9–12 min | Fuel: Unleaded ≥91 RON | Max Power: 12000 W | Consumption: 500 ml/kWh
C10000 Intelligent Power Supply
Fast-charging power hub for batteries.
Model: CSX702-9500 | Weight: 11.4 kg | Input: 220–240 VAC 24 A MAX | Output: 59.92 VDC 9000 W MAX | Charge Time: 9–12 min | Protection: Over-voltage, over-temp, over-current
Relay (RL01-65)
Signal repeater for extended communication.
Size: 120×110×100 mm | Weight: ≤575 g | Voltage: 9V 3A / 12V 2.5A / 15V 2A | Power: 9–12 W | Battery: 6500 mAh | Runtime: 4 hours | IP Rating: IP55
